YRSA01/1/2/3-H(K) 1250V 40-2000A Sekring Kacepetan Dhuwur

Galaxy Fuse minangka produsen China YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuse sing misuwur. Supplier sekring semikonduktor kacepetan dhuwur China Galaxy Fuse (Yinrong)'s YRSA(x) -HK Series gR sekring kacepetan dhuwur dirancang khusus kanggo nglindhungi piranti semikonduktor.

Kirim Pitakonan

Deskripsi Produk

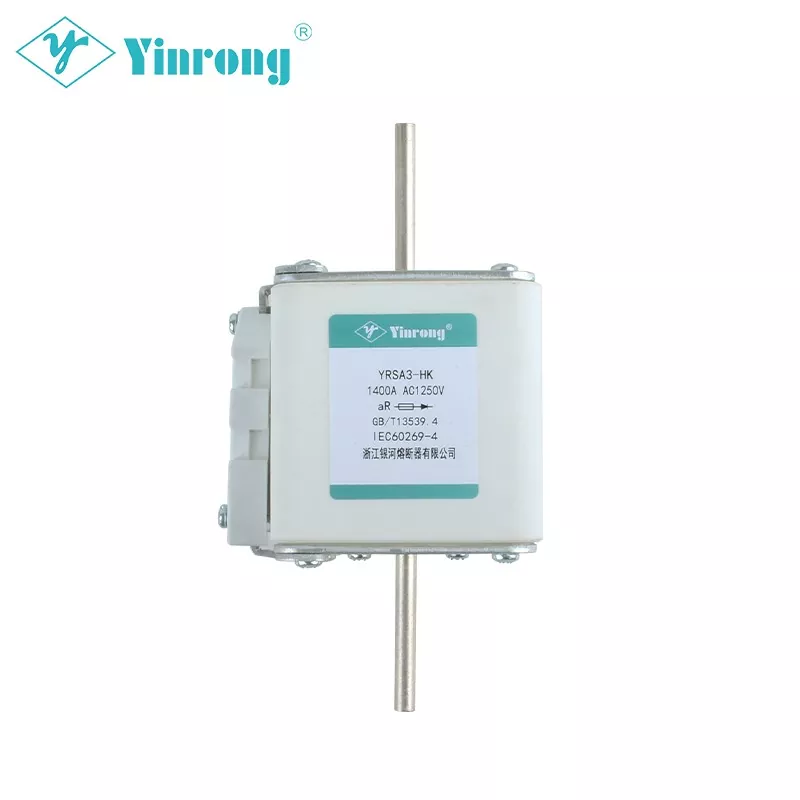

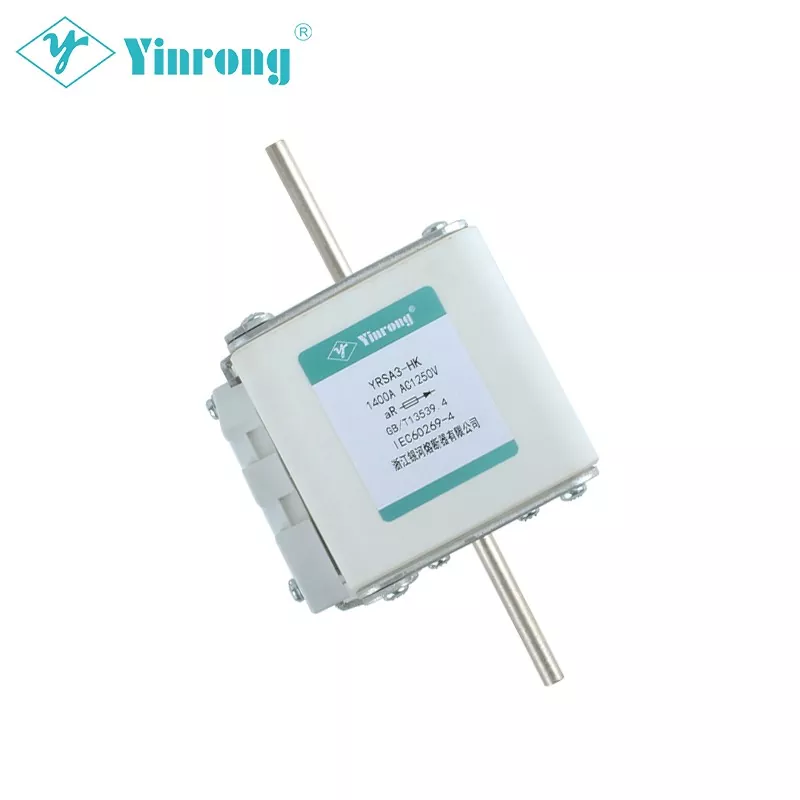

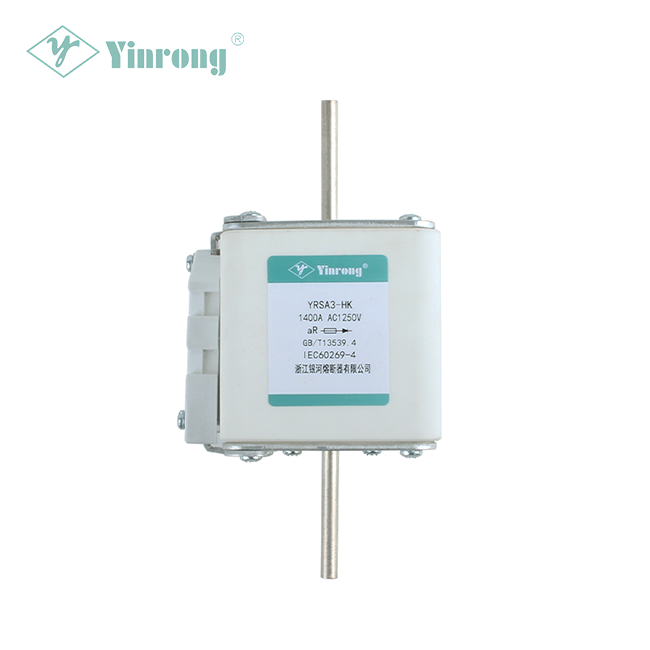

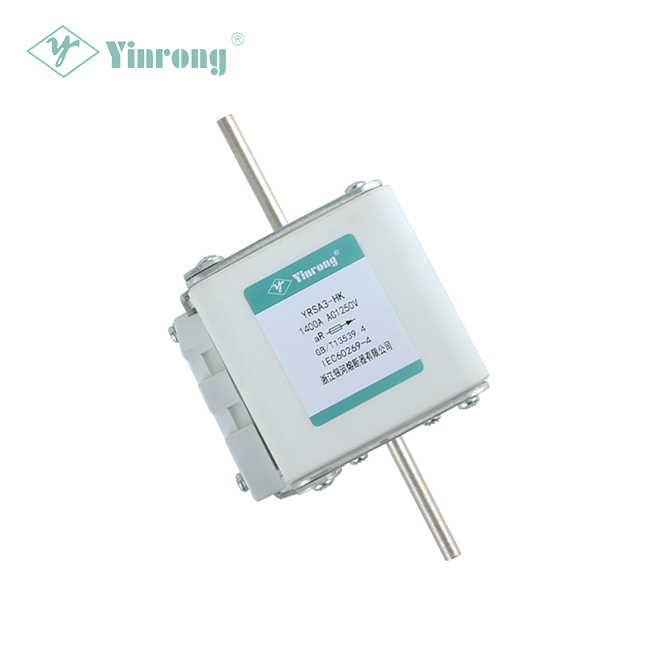

YRSA01/1/2/3-H(K) 1250V 40-2000A High-Speed Fuses are designed for both overload and short-circuit protection. YRSA(x)-HK Series gR high speed fuses provide a wide amperage rating of 40-2000A under the rated voltage of 1250V (IEC/UL), which can typically fit most semiconductor devices. This YRSA(x)-HK Series gR high speed fuse conforms to the national standard GB13539.4 and the international electrical committee standard IEC60269-4.Many square body fuses are equipped with a trip-indicator. This trip indicator can operate a field-mountable micro-switch which is easily mounted directly onto the fuse. Galaxy Fuse (Yinrong) also affords various high speed fuses to meet customers' requirements.

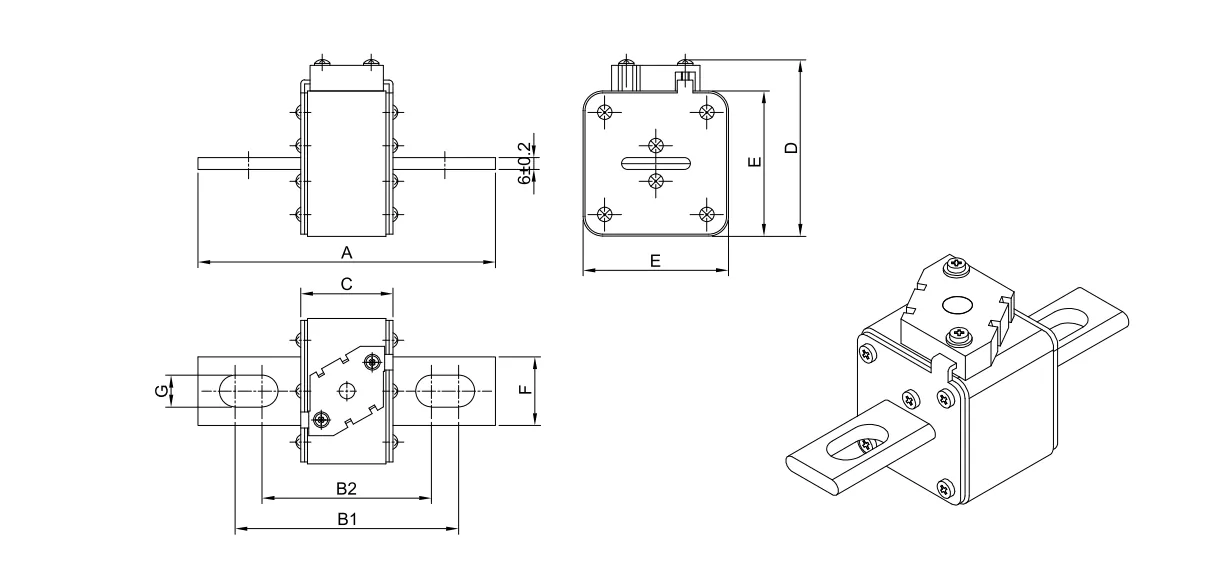

Ukuran (mm)

P/N	A±2.5	A(115）±2.5	B1±2.5	B1（115）±2.5	B2±2.5	B2（115）±2.5	C±2.5	D±2.5	E±2	F±1	G ± 0,5

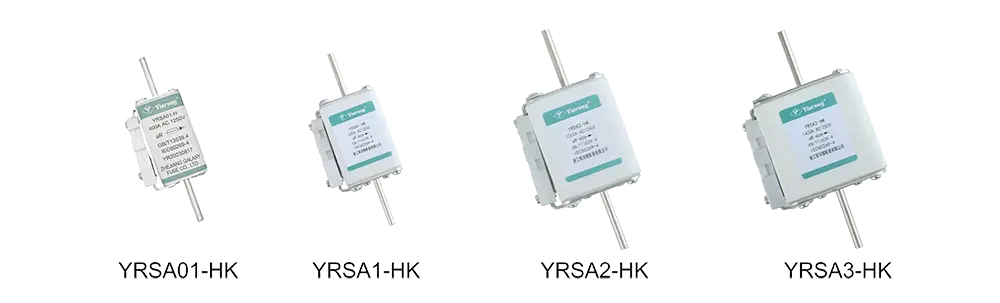

YRSA01-H	110	148	85	123	72	110	50	59	45	20	10
YRSA1-H	136	157	104	126	78	100	50	69	53	25	14
YRSA2-H	135	159	105	125	78	99	50	77	61	25	14
YRSA3-H	135	155	106	125	77	97	51	92	75	36	16

Persetujuan & Standar

·GB/T13539.4

· IEC60269-4

· UL248-13

Kelas Operasi

·gR

· aR

Fitur & Keuntungan

· Sistem listrik 1250VAC kasedhiya

· Rating 40-2000A kasedhiya

· Rating Interrupting dhuwur banget

· Sesuai karo standar IEC kanggo panriman global

· Kemampuan muter sing unggul

· Watesan saiki sing dhuwur

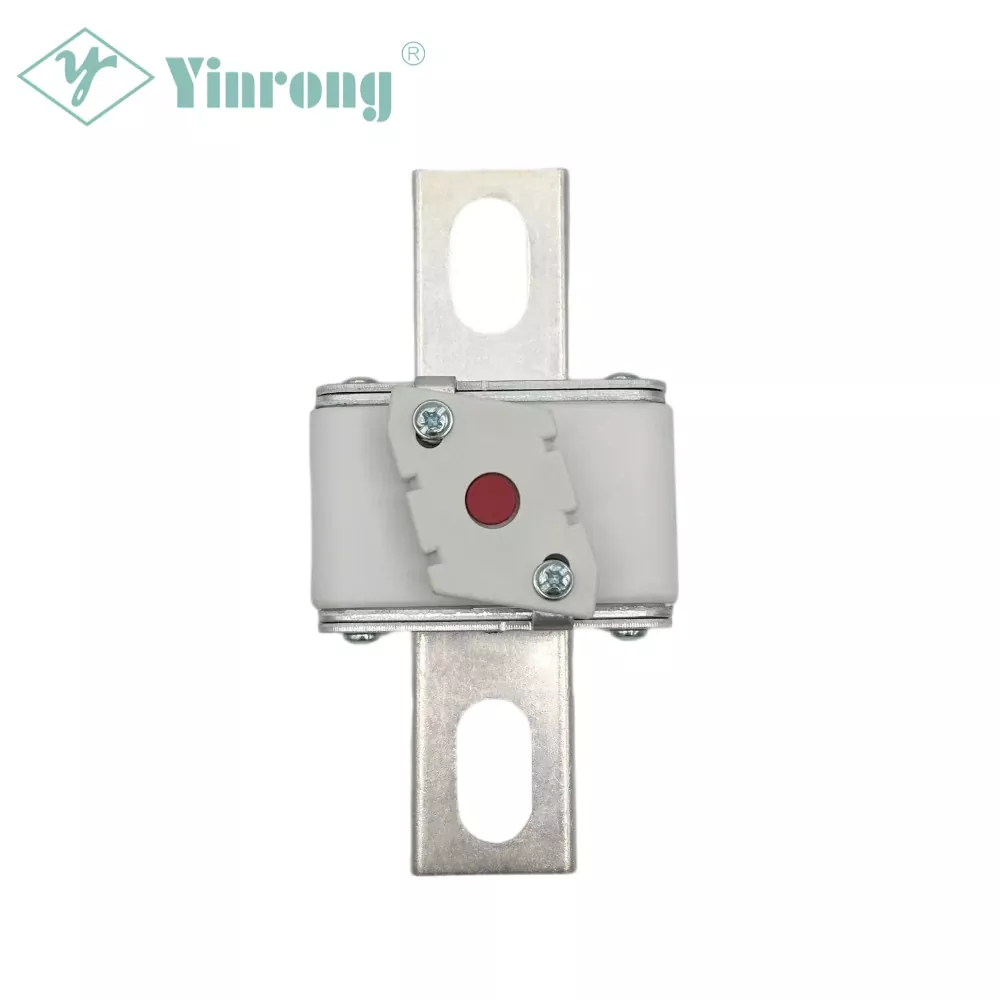

· Visual lan opsional micro swith sekring indikasi diunekake

Aplikasi

· Piranti konversi daya (UOS, inverter, rectifier, drive)

· Sistem DC (DC bus umum, rem injeksi DC)

· Aplikasi proteksi baterei

· Stasiun pengisian kendaraan listrik

· Pemanas lan sumber daya

· Semikonduktor liyane

Negara Asal

· Republik Rakyat Tiongkok

Fusing Konvensional lan Non-Fusing

Rated Saiki (A)	Wektu Konvensional （h）	Arus Konvensional
		"gR"
		Inf	lf
ln≤63	1	1.13ln	1.6ln
63＜In≤160	2
160＜ln≤400	3
400＜ln	4
Cathetan: ln minangka nilai saiki sekring; lnf minangka arus non-fusing konvensional; yen saiki fusing konvensional.
